2022+ Ford Next Gen Ranger Ironman 4x4 Raid Bullbar
Couldn't load pickup availability
Where style truly meets functionality – and ripper value!

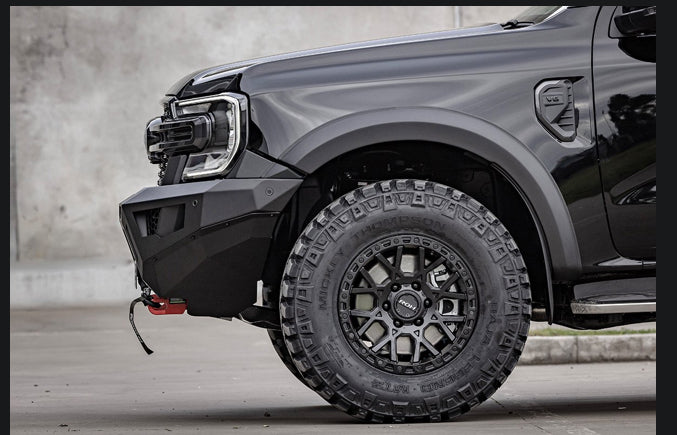

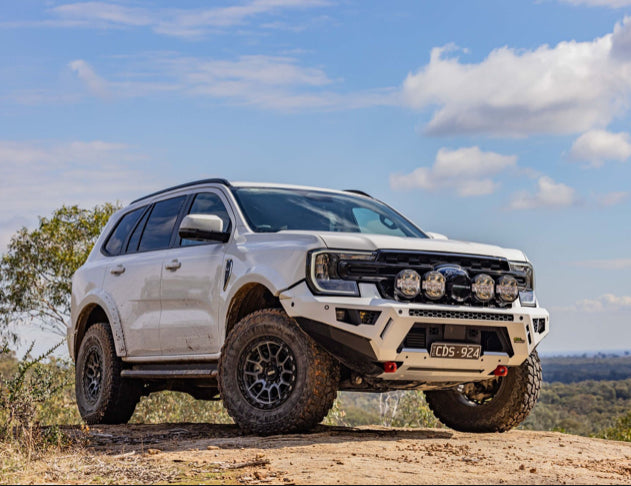

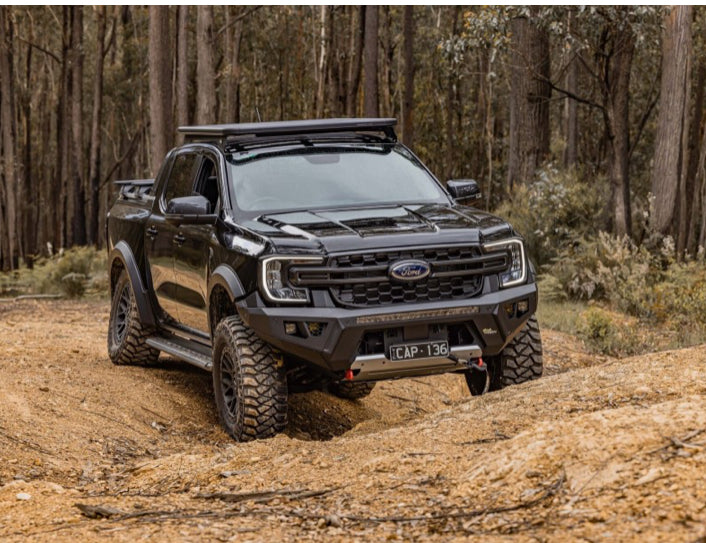

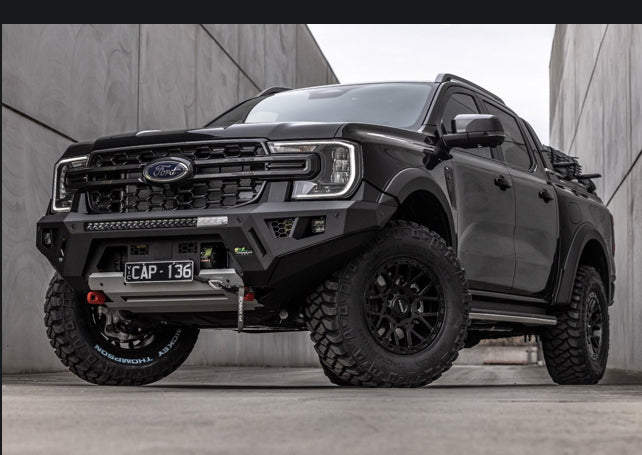

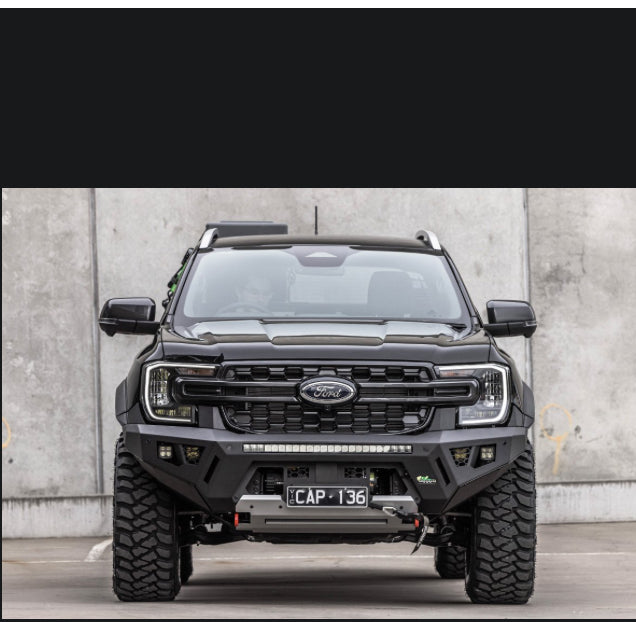

The Raid Bull Bar to suit the Next-Generation Ford Ranger and Everest, has a sleek low-profile design, offers robust steel strength with an integrated 4mm steel front skid plate and 2 x 5-tonne recovery points as standard!
The list of standard inclusions continues with a chassis-mounted winch cradle, provision for a optional 32” lightbar and up to 4 cube lights means this bar is ready for your next off-road adventure.
DESIGN
• Bumper replacement design, no cutting required
• Minimal protrusion at the front of the vehicle, adding 115mm
• Maximum cooling efficiency with a large ‘front mouth’ design, ensuring great airflow and creating a striking design, enhanced with strategically placed grilles and baffles
• Steel front protection plate with built-in air dam
FUNCTIONALITY
• Integrated and included 16mm rated recovery points with chassis mounted position and radius edges
• LED lightbar holder, dual cube light holders on both sides of the vehicle with stylish removable grill plate (lights optional extra)
• Winch ready
SAFETY
• All factory OEM safety features have been maintained in the bar
• Innovative radar relocation design, using the existing factory brackets for ease of installation
• Included brackets to relocate the horn and parking sensors
Optional Accessories
- Winch extension cable WWB032
- Hidden control box mount kit WWBCP110
- Bull bar multi-Function light patch loom IBBPL110
- Optional centre light bar ILBSR002BW(Requires x1)
If you are installing the centre light bar you will need to purchase IPL110 wiring harness
separately for some makes and models
Optional lights – Offroad use only
Optional Cube lights: (can install up to x 4 cube lights)
20W BRIGHT CUBE SPOT BEAM - Part Number: ILED20B ea
20W BRIGHT CUBE SPOT BEAM - AMBER COLOUR Part Number: ILED20BA ea
20W BRIGHT CUBE FLOOD BEAM - CLEAR COLOUR ILED20BF ea
20W BRIGHT CUBE FLOOD BEAM - AMBER COLOUR Part Number: ILED20BFA ea
It is important to work safely and use appropriate safety equipment while working
Optional lights – On road use
IFL0201A – LED Fog Light 2” Amber Beam (Pair)
IFL0201W – LED Fog Light 2” White Beam (Pair)
It is important to work safely and use appropriate safety equipment while working
Specifications
WINCH COMPATIBILITY |
Synthetic Winch Only |
RECOVERY POINTS | Included – 16mm Rated Recovery Points |
DRIVING LIGHT MOUNTS |
Included. Optional 32″ Bright Sabre Single Row Lightbar and 20W Bright Cube Lights |
ADR COMPLIANT | Yes |
AIRBAG COMPATIBLE |
Yes |
SENSOR & RADAR COMPATIBLE |
Yes |
POWDER COATING | Matte Black Textured Finish |
COLOUR CODING COMPATIBLE |
Yes |
